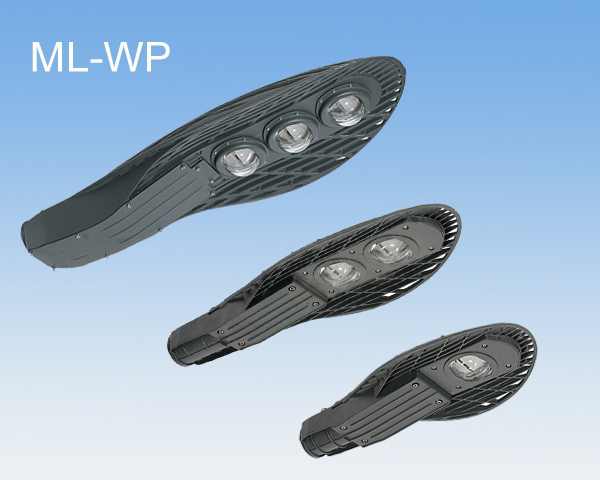

ML-WP

--- High Quality and Brightness LED Light Source.
--- Stable and Efficient LED Driver.
--- Optimal Heat Sinking Performance.
--- Superior Optical Design.

OnLine Service:

E-mail Us PDF Download
【Prev Products】 【Next Products】
Share to:

Description

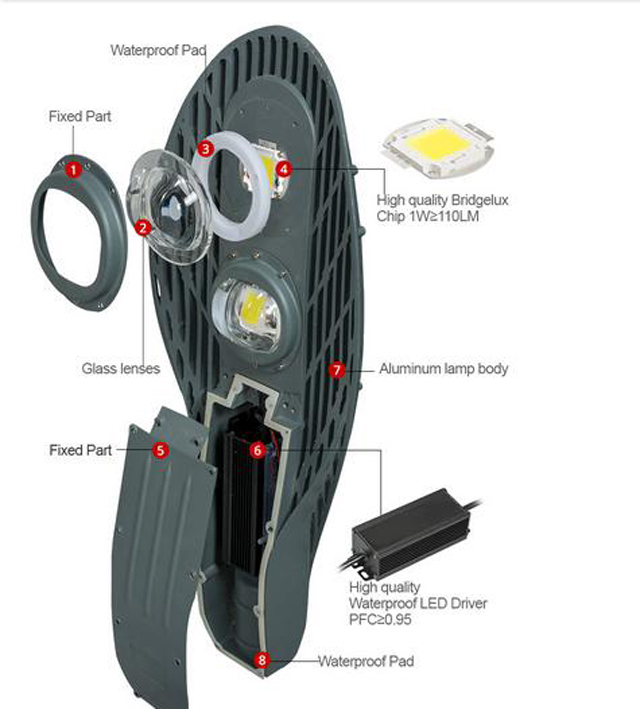

1, With reasonable structure, beautiful appearance, resistance to heat and humidity, good sealing performance.

2, Light source efficiency exceeds 110lm/W, the luminous efficiency is high, the vision is vivid, flicker free, no glare.

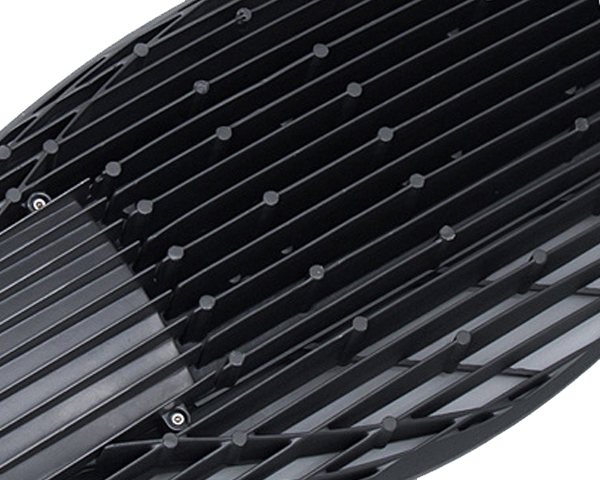

3,Excellent heat dissipation design,with high thermal conductivity material, light source can be used continuously for 50000 hours,

4, All power supply with high quality components, the efficiency can be up to 85%, save energy as high as 70%.

5, The lamp is convenient to install and is stable and reliable.

6, Environmental protection and energy saving without pollution, high stability. Realize the true meaning of the green environmental protection lighting.

Model

ML-WP

LED Power

50W

100W

150W

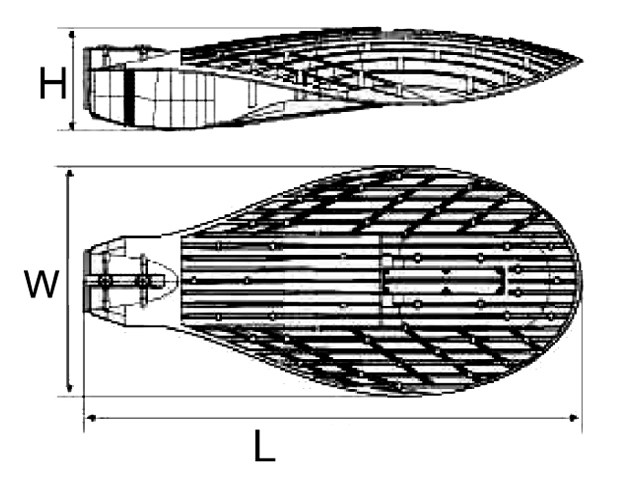

Lamp size mm

530*250*110

650*250*110

820*320*130

Packing size (cm)

56*27.5*13/1Pcs

67*27*13/1Pcs

85*34*15/1Pcs

N.W(Kg)

2.2

4.1

5.3

G.W(Kg)

2.7

4.6

5.8

LED Quantity

1

2

3

Input Voltage

AC90-265V

Luminous efficiency

110Lm/W

Frequency Range

50/60HZ

Working temperature

-40℃+55℃

Power factor

0.9

Working Humidity

10%90%

Power supply efficiency

85%

Light color

White/Warm white

Beam Angle(Degree)

120°

IP Grade

IP65

CRI

>80

Working life

50000hrs

Color temperature

5500K-6500K

Warranty

2-3years
