--- High Quality and Brightness LED Light Source.
--- Stable and Efficient LED Driver.
--- Optimal Heat Sinking Performance.
--- Superior Optical Design.
OnLine Service: |
|
|---|---|
E-mail Us
|
 PDF Download
|
| 【Prev Products】 | 【Next Products】 |
|
Share to:
|
|
1, With reasonable structure, beautiful
appearance, resistance to heat and humidity, good sealing performance.
2,
Light source efficiency exceeds 110Lm/W, the luminous efficiency is high, the
vision is vivid, flicker free, no glare.

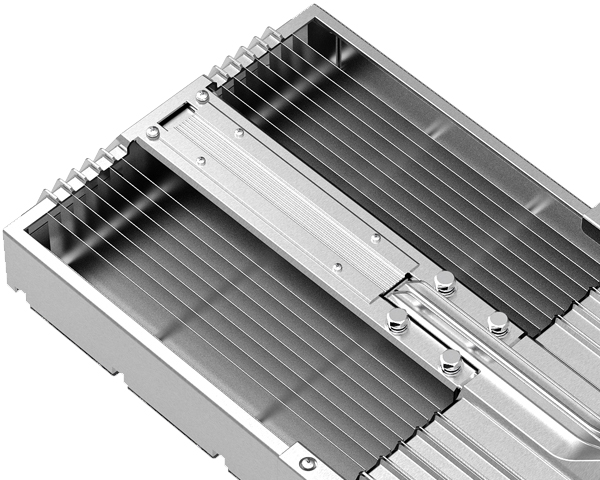

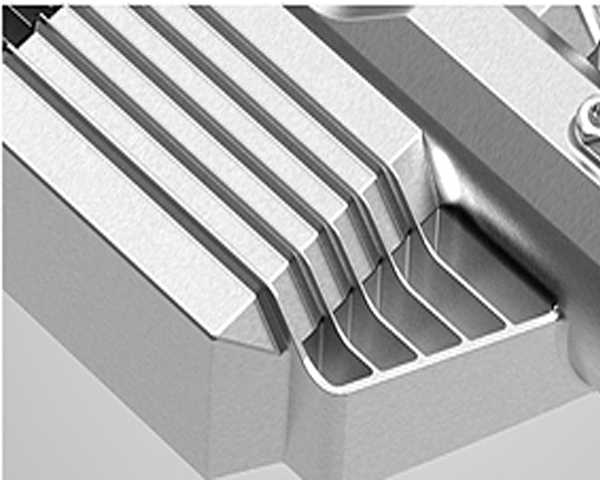

3,Excellent
heat dissipation design,with high thermal conductivity material, light source
can be used continuously for 50000 hours,
4.

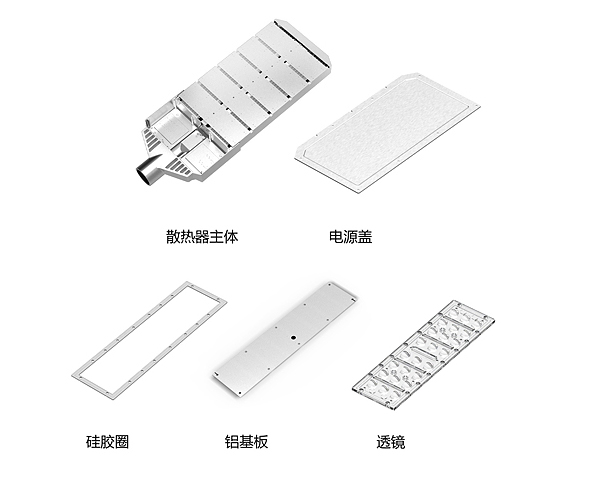

Smart modular design, modular 1-6, watts from 50-300W, high efficiency cooling
5, All power supply with high quality
components, the efficiency can be up to 90%, save energy as high as 70%.
6,
The lamp is convenient to install and is stable and reliable.
7,
Environmental protection and energy saving without pollution, high stability.
Realize the true meaning of the green environmental protection lighting.
|

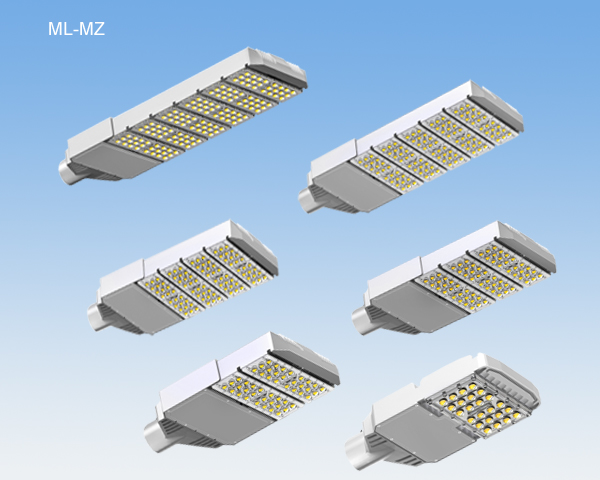

Model |
ML-MZ001 |
||||||||
|
LED Power |
50W |
100W |
150W |
200W |
250W |
300W |
|||
|

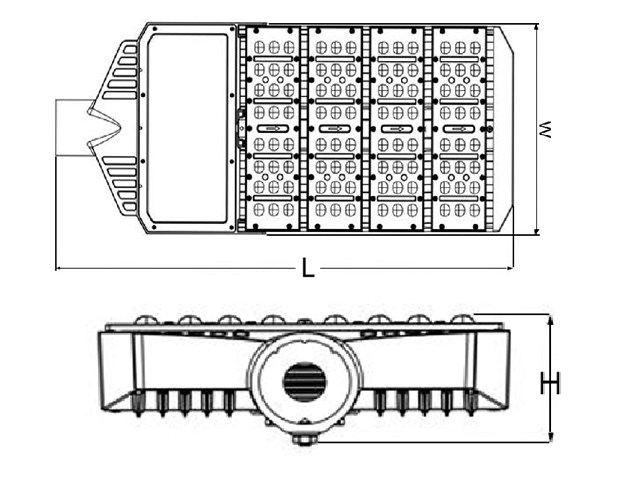

Lamp size(mm) |
407*290*80 |
500*290*80 |
593*290*80 |
686*290*80 |
779*290*80 |
872*290*80 |
|||
|
Packing size (cm) |
41.5*30*10 /1Pcs |
51*30*10 /1Pcs |
60.5*30*10 /1Pcs |
70*30*10 /1Pcs |
79*30*10 /1Pcs |
89*30*10 /1Pcs |
|||
|
N.W(Kg) |
4.5 |
6.0 |
7.3 |
8.5 |
10.5 |
12.5 |
|||
|
G.W(Kg) |
5.0 |
6.5 |
7.8 |
9.0 |
11 |
13 |
|||
|
LED Quantity |
56 |
112 |
168 |
224 |
280 |
336 |
|||
|
Input Voltage |
AC90-265V |
Luminous efficiency |
110Lm/W |
||||||
|
Frequency Range |
50/60HZ |
Working temperature |
-40℃～+55℃ |
||||||
|
Power factor |
0.9 |
Working Humidity |
10%～90% |
||||||
|
Power supply efficiency |
85% |
Light color |
White/Warm white |
||||||
|

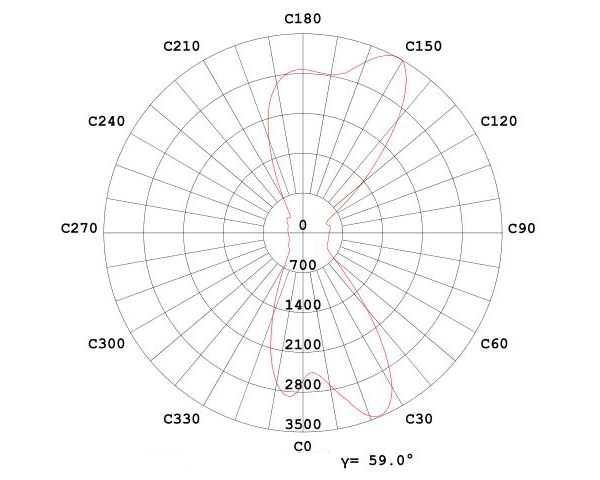

Beam Angle(Degree) |
120° |
IP Grade |
IP65 |
||||||
|
CRI |
>80 |
Working life |
＞50000hrs |
||||||
|
Color temperature |
5500K-6500K |
Warranty |
3-5years |
||||||
