--- High Quality and Brightness LED Light Source.--- Stable and Efficient LED Driver.--- Optimal Heat Sinking Performance.--- Superior Optical Design.
OnLine Service: |
|
|---|---|
E-mail Us
|
 PDF Download
|
| 【Prev Products】 | 【Next Products】 |
|
Share to:
|
|
1, With reasonable structure, beautiful
appearance, resistance to heat and humidity, good sealing performance.
2, Light source
efficiency exceeds 110Lm/W, the luminous efficiency is high, the vision is
vivid, flicker free, no glare.

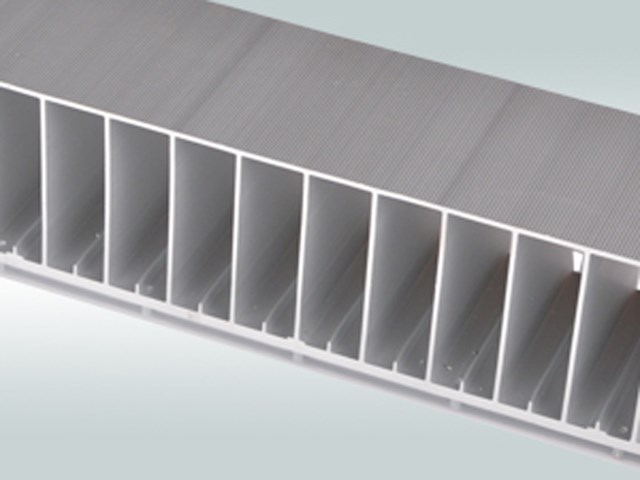

3,Excellent heat
dissipation design,with high thermal conductivity material, light source can be
used continuously for 50000 hours,
4. Smart modular
design, modular 2-6, watts from 60-180W, high efficiency cooling
5, All power supply with high quality
components, the efficiency can be up to 90%, save energy as high as 70%.
6, The lamp is
convenient to install and is stable and reliable.
7, Environmental
protection and energy saving without pollution, high stability. Realize the
true meaning of the green environmental protection lighting.

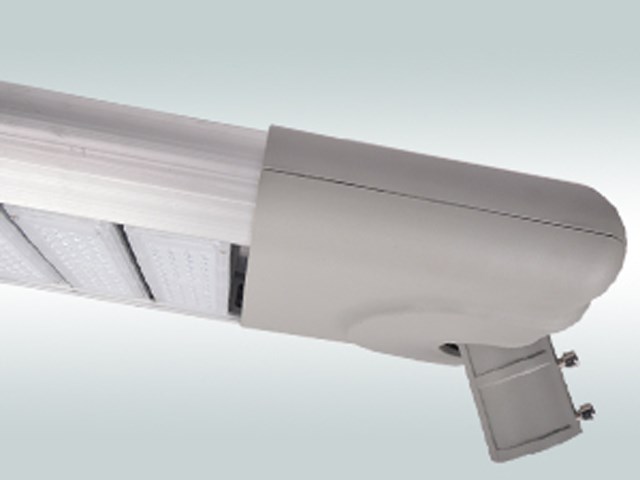

8,Mounting angle
could be adjustable

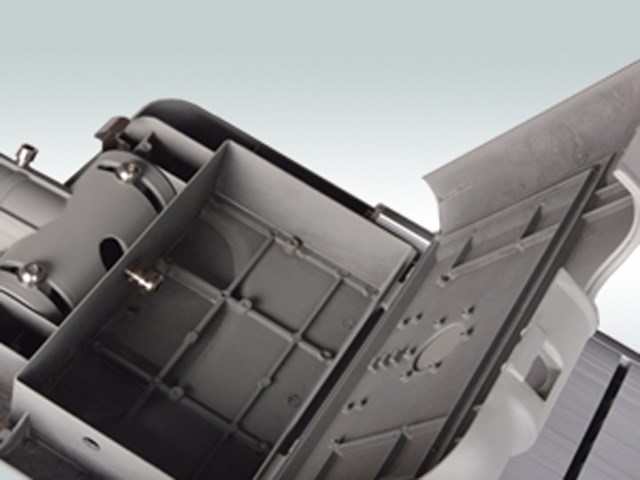

9,individual
driver box,With removable module, easy to maintain

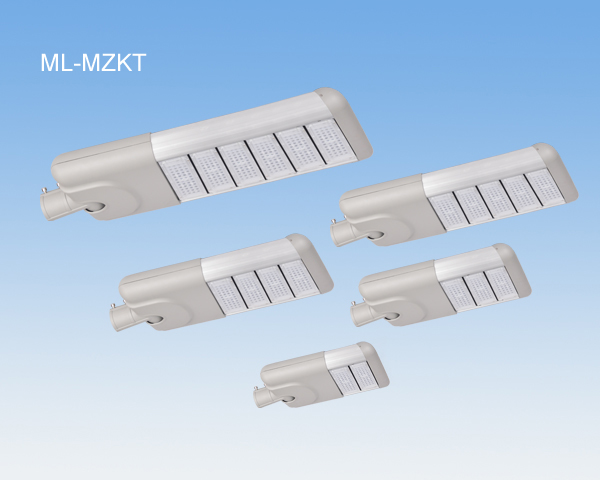

Model
ML-MZKT001
LED Power
60W
90W
120W
150W
180W

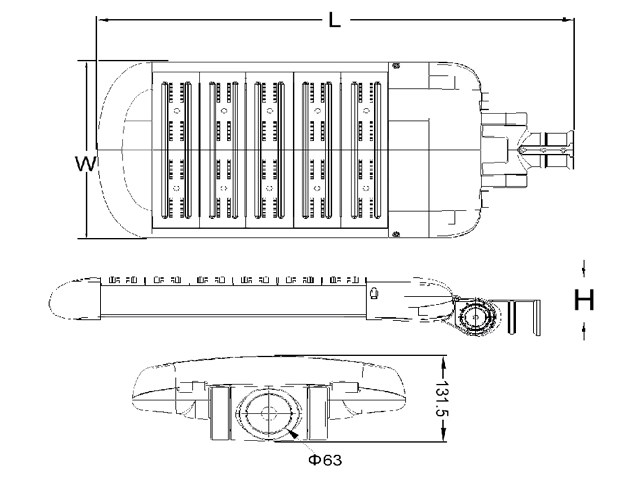

Lamp size （mm）
595*360*80
679*360*80
763*360*80
847*360*80
931*360*80
Packing
size（cm）
61.5*38*10
/1Pcs
70*38*10
/1Pcs
78.5*38*10
/1Pcs
87*38*10
/1Pcs
95*38*10
/1Pcs
N.W（Kg）
6.6
7.5
8.4
9.3
10.2
G.W（Kg）
7.1
8
8.9
9.8
10.7
LED
Quantity
96
144
192
240
288
Input
Voltage
AC90-265V
Luminous
efficiency
110Lm/W
Frequency Range
50/60HZ
Working
temperature
-40℃～+55℃
Power factor
0.9
Working
Humidity
10%～90%
Power supply efficiency
85%
Light
color
White/Warm white
Beam
Angle(Degree)
120°
IP Grade
IP65
CRI
>80
Working
life
＞50000hrs
Color
temperature
5500K-6500K
Warranty
3-5years
